Item |

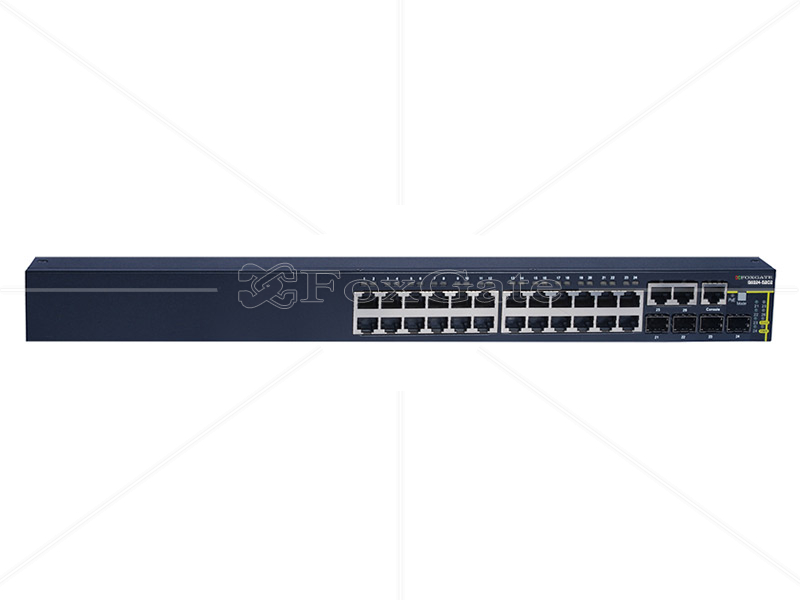

S6324-S2C2 |
S6324-S2C2-POE |
|||
| Ports |
24×10/100/1000 Base-T |
24×10/100/1000 Base-T POE
|
|||
Performance |
|||||
| Switching Capacity | 56Gbps | 56Gbps | |||
| Forwarding Rate | 42Mpps | 42Mpps | |||
| MAC ADDRESS | 16K | 16K | |||
| ACL TABLE | 1K | 1K | |||
| Queues per port | 8 | 8 | |||
| VLAN TABLE | 4k | 4k | |||
| Dimension（W×H×D） | 440×44×230mm | 440×44×410mm | |||
| Power Supply | Input AC: 100V～240 V | Input AC: 100V～240 V | |||
| Power Consumption | 30W | 400W | |||
| MTBF | >80,000 hours | ||||
| Temperature | Working 0°C～50°C, storage −40°C～70°C | ||||
| Relative Humidity | 5%～95%，non-condensing | ||||
| EMC safety | FCC, CE, RoHS | ||||
| Physical protection | Lightning Protection Level: 10/700 4KV | ||||
Main Features |
|||||
| Forwarding | Storage and forwarding | ||||
| L1,L2 Features | VLAN Type | 802.1Q based Vlan and support upto 4K vlan id | |||
| Support QinQ， selective QinQ, Flexibe QinQ | |||||
| Support Voice vlan | |||||
| Port based Vlan | |||||
| MAC based Vlan | |||||
| IP subnet Vlan | |||||
| Protocol based Vlan | |||||
| Private VLAN | |||||
| Support GVRP | |||||
| Spanning Tree | 802.1D STP, 802.1W RSTP, 802.1S MSTP | ||||
| Support Root guard, BPDU guard, BPDU forwarding | |||||
| Link Aggregation | Support LACP 802.3ad, max 128 groups trunk with max 8 ports for each trunk | ||||
| Support src-mac/dst-mac/src-dst-mac/src-ip/dst-ip/src-dst-ip based load balance | |||||
| MAC Operation | Support MAC binding | ||||
| Support black hole MAC | |||||
| Support MAC limit per port | |||||
| Broadcast storm control | Support Broadcast / Multicast / Unicast Storm Control | ||||
| Supports control and can set rate for broadcast | |||||
| Port | Support VCT & DDM | ||||
| Support UDLD, LLDP, LLDP-MED | |||||
| Support RSPAN, ERSPAN | |||||
| Support 1:1 and N:1 port mirror | |||||
| Jumbo Frame | |||||
| Loopback interface | |||||
| Port loop detection | |||||
| Bandwidth control: At least 64Kbps step | |||||
| Support HOL preventing first packet jam, semi-duplex backpressure, duplex IEEE802.3x | |||||
| GE combo ports could be compatible with FE SFP module | |||||
| Port Protection | |||||
| POE+ | NA | Support IEEE 802.3af POE | |||
| Support IEEE 802.3at POE+ (30W) | |||||
| Support global / port POE function control | |||||
| L3 Lite | Support 8 static routes and route summarization | ||||
| QOS Features | 8 queues per port | ||||
| Support QinQ, Selective QinQ, Flexible QinQ | |||||
| Traffic classification based on IEEE 802.1p CoS, IP Precedence, DSCP, TCP/UDP port number, Access Control List | |||||
| Supports SP, WRR, SWRR, DWRR for scheduling | |||||
| Support flow shaping | |||||
| Security | IEEE 802.1x | Port, MAC based authentication | |||
| Support guest vlan and auto vlan | |||||
| AAA | RADIUS for Ipv4 and Ipv6 | ||||
| TACACS+ for Ipv4 | |||||
| ACL | Support 1K Access Control Lists(ACL) based on source/destination IP address, source/destination MAC address, IP type, TCP/UDP port number, IP precedence, time range, ToS | ||||
| ACL on VLAN interface | |||||
| Flow redirect based on ACL | |||||
| Enhanced | Monitor pingSweep, and anti illegal multicast, controlled traffic | ||||
| Ip source guard | |||||
| Prevent illegal multicast source and limited multicast | |||||
| Multicast | Support IGMP v1/v2/v3 snooping | ||||
| Support Multicast Vlan Register (MVR) based on port | |||||
| Support Multicast receive control | |||||
| Support illegal multicast source detect | |||||
| Support multicast policy configuration | |||||
| IPv6 | ICMPv6, NDP, SNMP over IPv6, HTTP over Ipv6, Ipv6 Ping/tracer, Ipv6 Telnet, Ipv6 RADIUS+, Ipv6 Syslog, IPv6 SNTP, IPv6 FTP/TFTP | ||||
| Support DHCPv6 Server, Relay, Snooping | |||||
| Support MLD Snooping | |||||
| Support IPv6 MVR | |||||
| Management | Switch | CLI, WEB, Telnet, SNMPv1/v2c/v3 through IPv4 and IPv6 | |||
| Management | RMON 1,2,3,9 | ||||
| SSHv1,v2 & SSL support | |||||
| RJ45 Console | |||||
| Support Public & Private MIB interface | |||||
| Supports SNTP/NTP, Summer Saving Time | |||||
| Support Multiple sys-log servers | |||||
| Support OAM 802.3ah | |||||
| Support NMS software management | |||||
| Support MAX 24 unites cluster | |||||
| Supports IPv4 and IPv6 Security IP management | |||||
| Firmware & Configuration | Multiple firmware images/ configuration files | ||||
| Firmware upgrade via TFTP/FTP server | |||||
| Configuration file upload/download via TFTP/FTP server | |||||
| DHCP | Supports BOOTP, DHCP server/client for IP address assignment | ||||
| Support DHCP relay, DHCP relay option 82, DHCP Snooping, and DHCP Snooping option 82 | |||||
